Update components on the work order unit

1. At the EMMS main menu, click the Work Orders button. The Work Orders display screen appears.
2. Right-click on the work order and select Change. The Edit Work Order change screen appears.

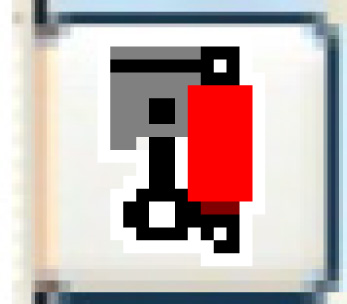

3. Click Components . The Update Component List change screen appears.
4. To replace a component:
   1. Right-click on the component and select Replace. The Replace Component screen appears.
   2. Fill in the fields as required.

      Component Itemis the VMRS code identifying the component being added to the unit. You can click on the Prompt button to select the component from a list.

      Locationidentifies where on the unit the component has been installed, if applicable. You can click on the Prompt button to select the location from a list.

      Serial #is the serial number of the item being placed on the unit, if applicable. You can click on the Prompt button to select the serial number from a list.

   3. Click Enter to perform the replacement. You return to the Update Component List change screen.
5. To install a new component:

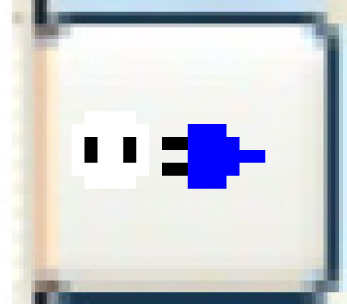

   1. Click Install . The Update Component List add screen appears.
   2. Fill in the fields as required.

      Componentis the VMRS code identifying the component being added to the unit. You can right-click in the field and select Prompt to select the component from a list.

      Serial Numberis the serial number of the item being placed on the unit, if applicable. You can right-click in the field and select Prompt to select the serial number from a list.

   3. Click Enter to save the component(s).
6. Click Exit to return to the Edit Work Order change screen.
